IMS Precision Filter Basket
IMS Precision Filter Basket
Made in Italy

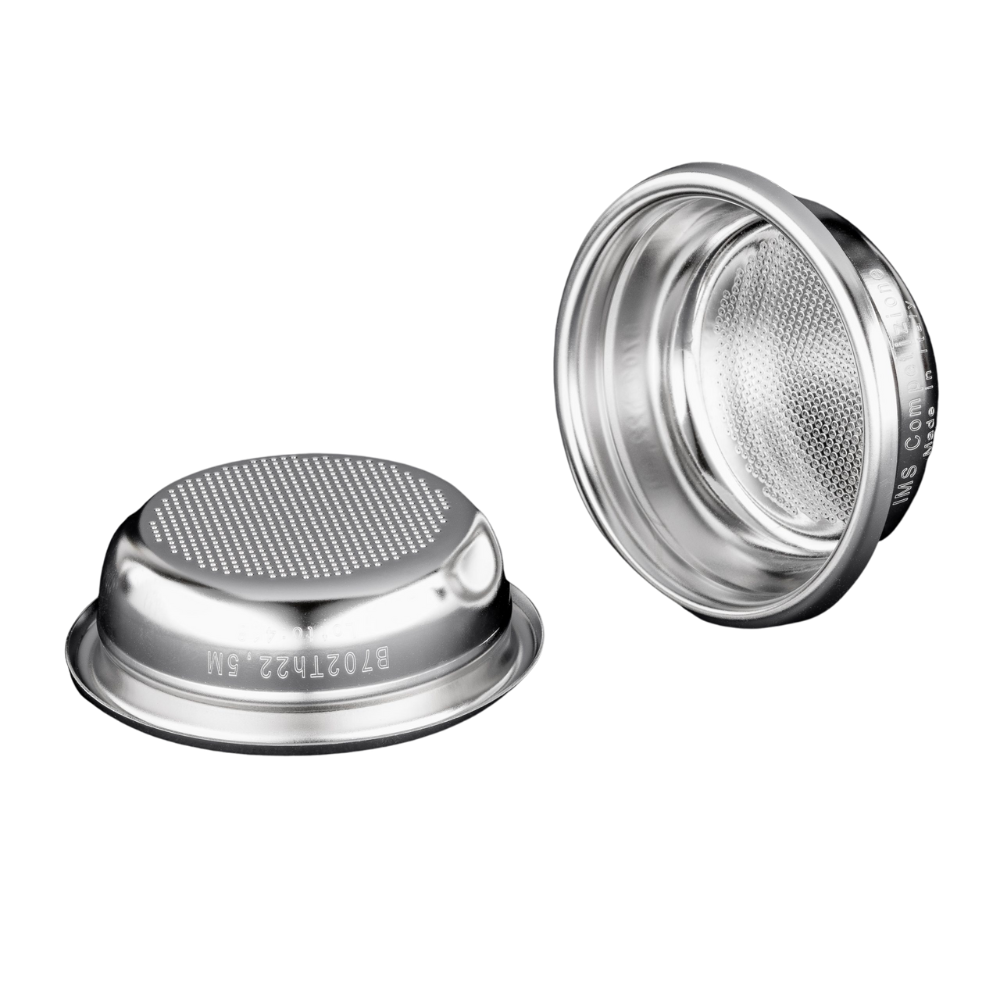

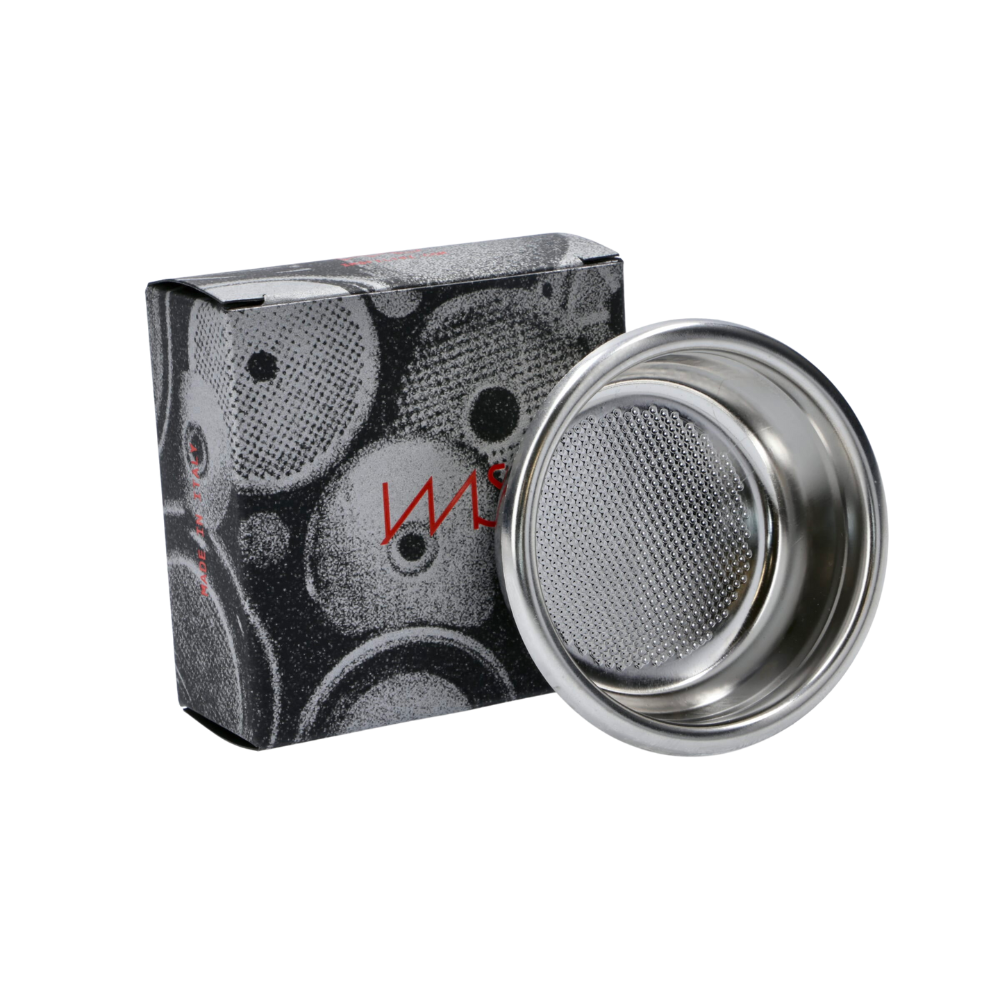

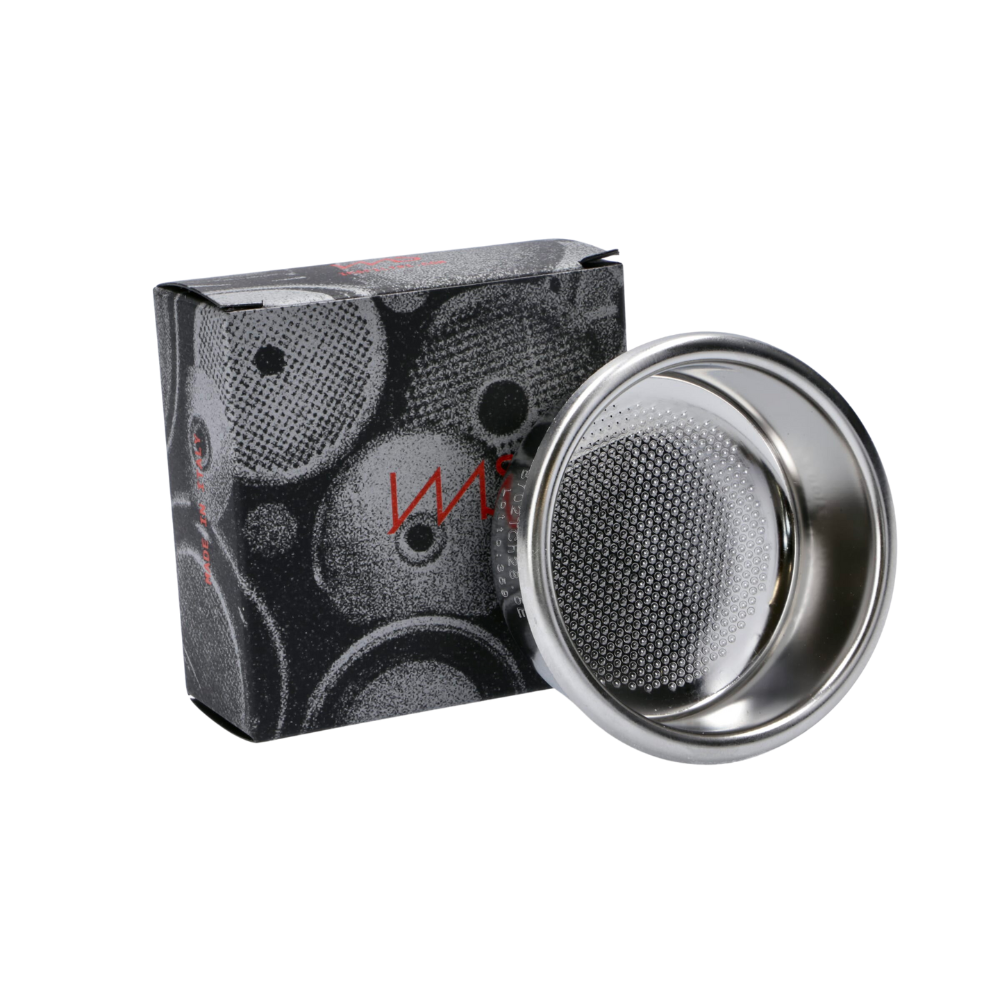

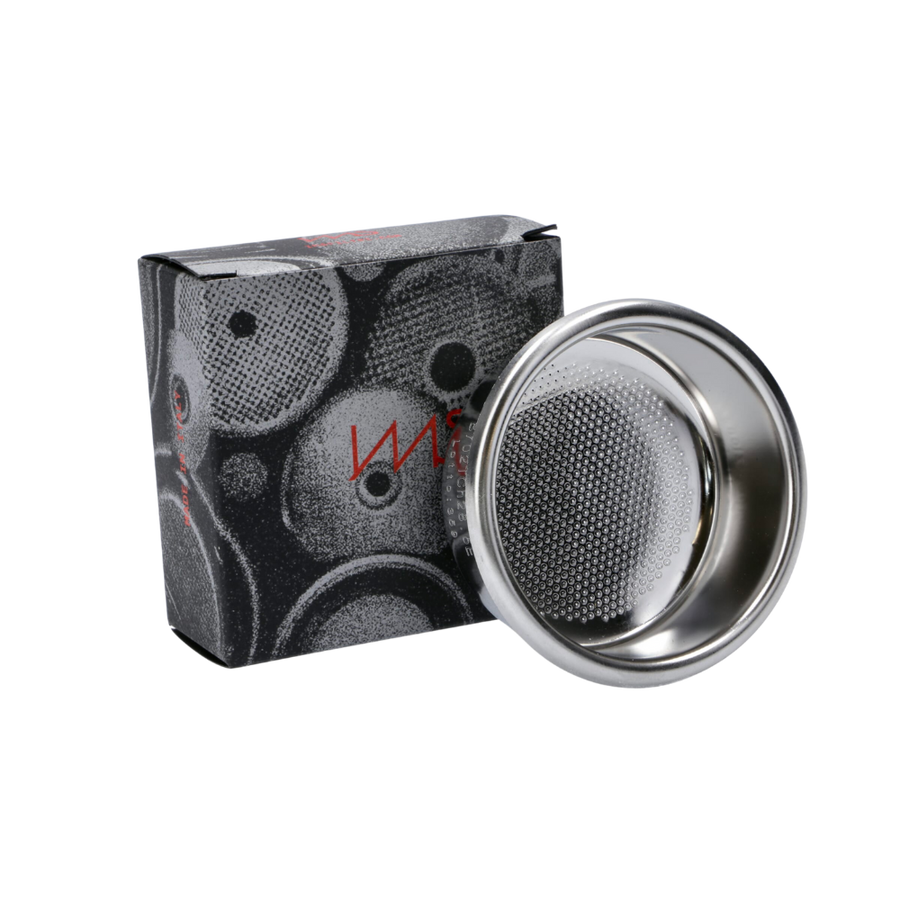

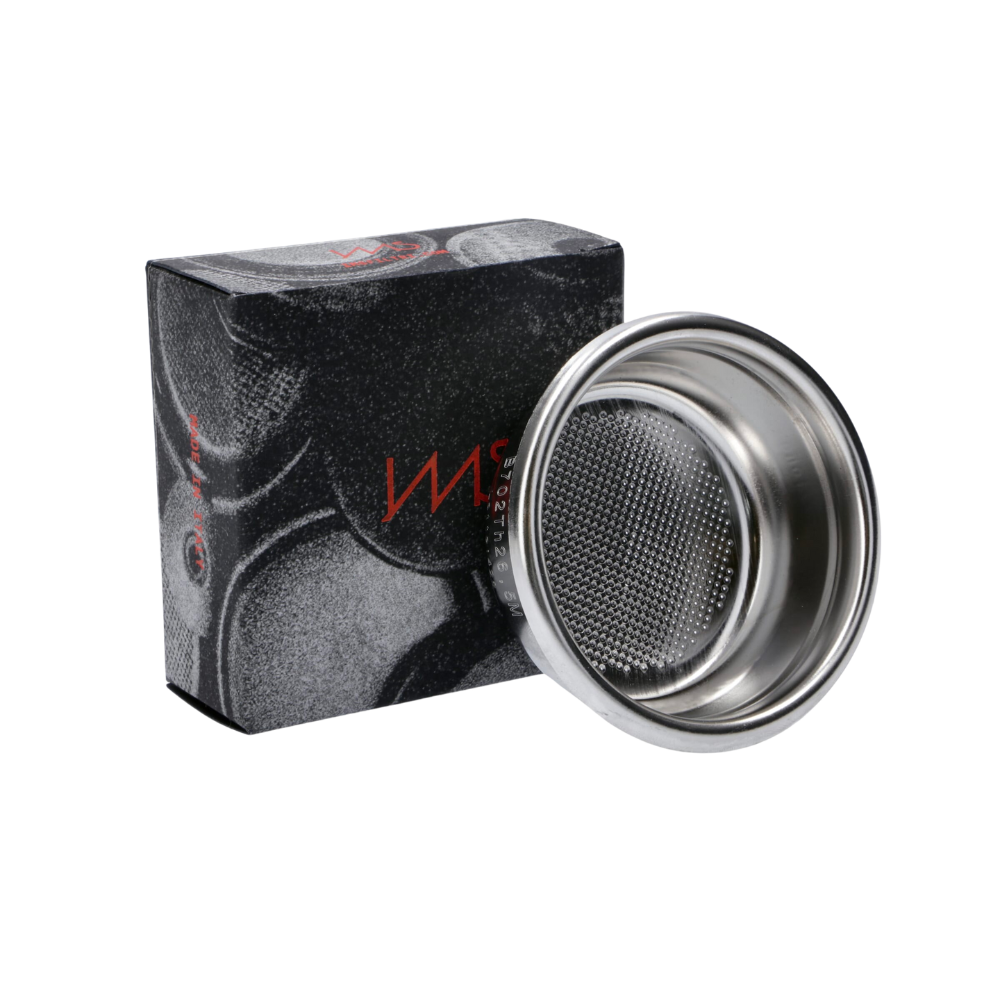

IMS Precision Filter Basket, ridgeless competition-class filter.
IMS produces a range of competition filters designed to bring out the best in your coffee. The shape and perforation have been designed to ensure ideal coffee extraction. The filter is bright and polished all around, even inside the holes. The bright and polished surface prevents dirt from adhering to it and facilitates cleaning.
| Type | B702TH24.5M | B702TH26.5M | B702TCH28.5E |
| Average Capacity | 14/16g | 16/18g | 20/22g |
| Border | 70mm | 70mm | 70mm |
| Body | 60mm | 60mm | 60mm |
| Height | 24.5mm | 26.5mm | 28.5mm |
| Tamper | 58/58.4mm | 58/58.4mm | 58/58.4mm |
| Shape | Rounded |
Rounded | Convex |
Compatibility
Ascaso, Astoria, Bezzera, Bfc, Bianchi, Brasilia, Conti, DID Orchestrale, ECM, Elektra, Expobar, Faema, Faema – E61, Fiorenzato, Fracino, Grimac, Iberital, Kees Van Der Westen, La Marzocco, La Nuova Era, La Pavoni, La Scala, Magister, Nuova Simonelli, Promac, Quality espresso, Rancilio, Rocket, Royal First, SAB, Sanremo, Slayer, SV, Synesso, VFA, Vibiemme, Victoria Arduino, Wega
Capacity
| Type | Dark | Medium | Light |
| B702TH24.5M | 16/18g | 17/19g | 20/22.5g |
| B702TH26.5M | 18/20g | 19/21g | 22/24g |
| B702TCH28.5E | 19/22g | 22/25g | 23/27g |
Disclaimer: All tests about the capacity of the filters were made using:
• Dark roast coffee: 80% Arabica, 20% Robusta blend.
• Medium roast coffee: 100% Arabica.
• Light roast coffee: Ethiopia, single origin.
